ICD Stackup Planner - Used by PCSI Engineering/CAM Department
The ICD Stackup Planner has been built up from the popular In-Circuit Design online Impedance Calculator
that has been utilized by thousands of PCB designers and Engineers world wide since 1996.
Users can add or delete an unlimited number of signal, plane and dielectric layers. Drag and drop multiple
layers to rearrange the stackup and instantly re-calculate the entire multilayer stackup simultaneously to
solve parameters for the desired Impedance.
User defined Dielectric Materials Library is also incorporated to further improve the accuracy by allowing the
creation of realistic multilayer stackups using the same core, prepreg and soldermask materials stocked by
the PCB Manufacturer. So what you calculate is what you get.
Click here to learn more information and to download an evaluation.

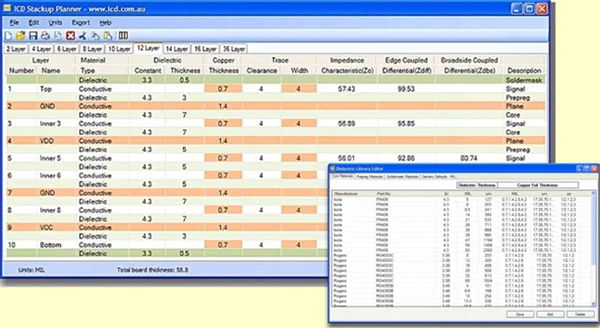

Screenshot
